Inconel Alloy is a kind of nickel based high temperature alloy.

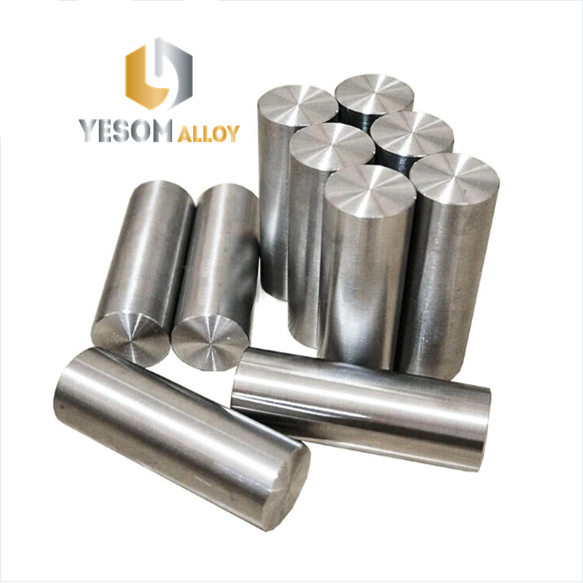

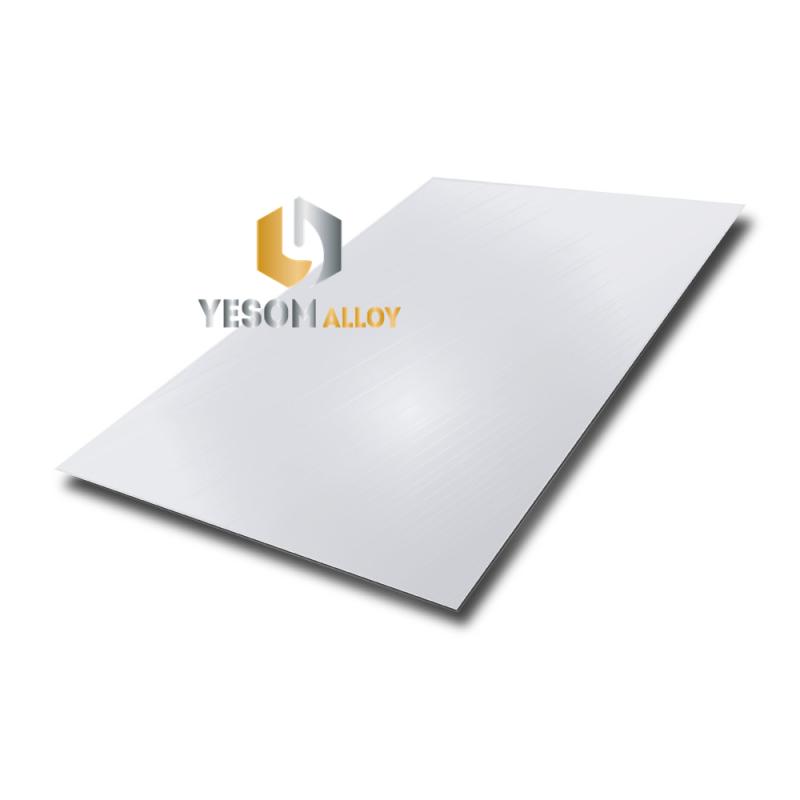

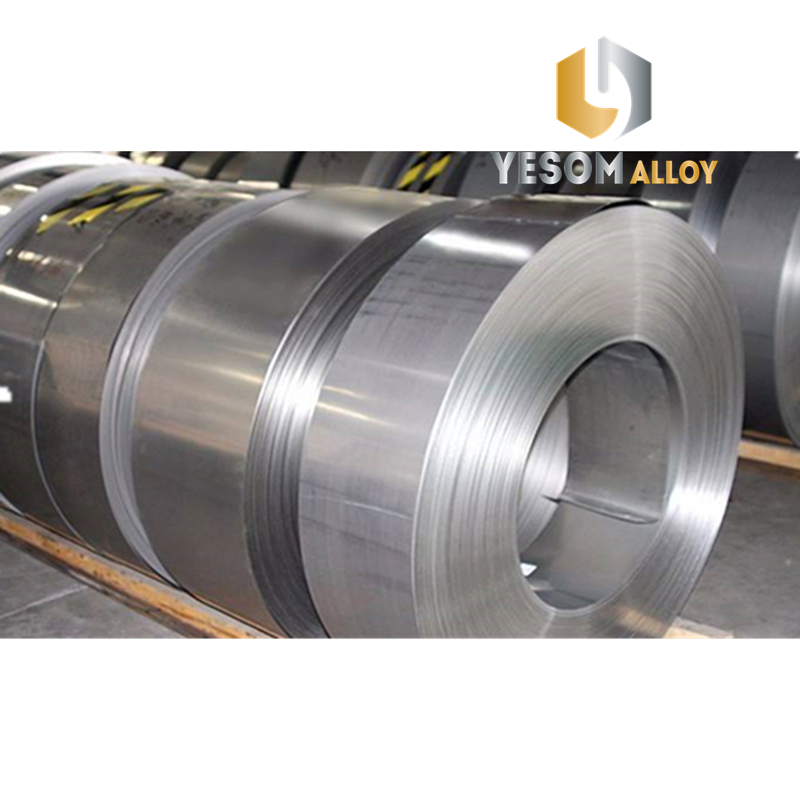

Yesom Group offers Inconel Alloy in shape of wire, bar, plate, strip, coil, flange, etc.
Alloy Grade: Inconel 600 , Inconel 601 , Inconel 718 , Inconel 617 , Inconel 625 , Inconel X-750
Inconel 600
Production and use of corrosive alkali metals.
Production of organic or inorganic chlorides and fluorides, as well as curved neck bottles and components in nuclear reactors and heat treatment furnaces
Inconel 600（UNS N06600 / NS312）
Chemical composition %
Ni: ≥72
Cr: 14-17
Fe: 6-10
Mn: ≤1.0
Cu: ≤0.5
Al: ≤0.35
Ti: ≤0.5
Co: ≤1.0
Nb: ≤1.0
C: ≤0.15
Si: ≤0.5
P: ≤0.04
S: ≤0.015
Melting Point ℃
1370-1425
Density g/cm3
8.4
Application Area
Thermowell, vinyl chloride monomer production
Designations： AWS 010
Specifications： AMS 5665 , AMS 5687 , ASTM B166
Alloy Details
| Density | Melting Point | Coefficient of Expansion | Modulus of Rigidity | Modulus of Elasticity |
| 8.47 g/cm³ | 1413 °C | 13.3 μm/m °C (20 – 100 °C) | 75.6 kN/mm² | 206 kN/mm² |
| 0.306 lb/in³ | 2575 °F | 7.4 x 10-6 in/in °F (70 – 212 °F) | 10965 ksi | 29878 ksi |
Heat treatment of finished parts
| Condition as supplied by AWI | Type | Temperature | Time | Cooling |
| Annealed or Spring Temper | Stress Relieve | 460 °C (860 °F) | 1hr | Air |
Properties
| Annealed | ||
| Approx. tensile strength | < 900 N/mm² | < 116 ksi |
| Approx. operating temperature | -200 to +1000 °C | -330 to +1830 °F |
| Spring Temper | ||
| Approx. tensile strength | 900 – 1450 N/mm² | 131 – 210 ks |
| Approx. operating temperature | -200 to +1000 °C | -330 to +1830 °F |
The above information is typical. If you require different please ask.
