Inconel Alloy is a kind of nickel based high temperature alloy.

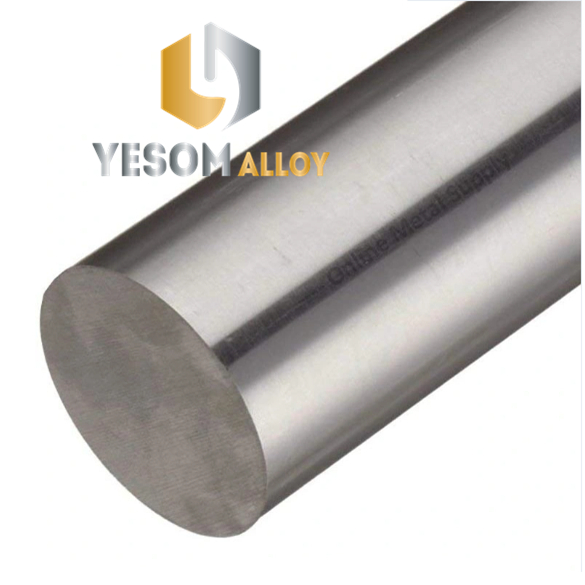

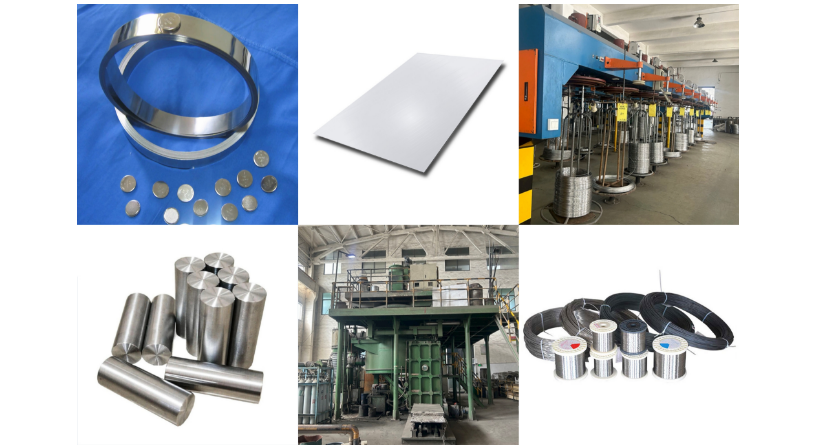

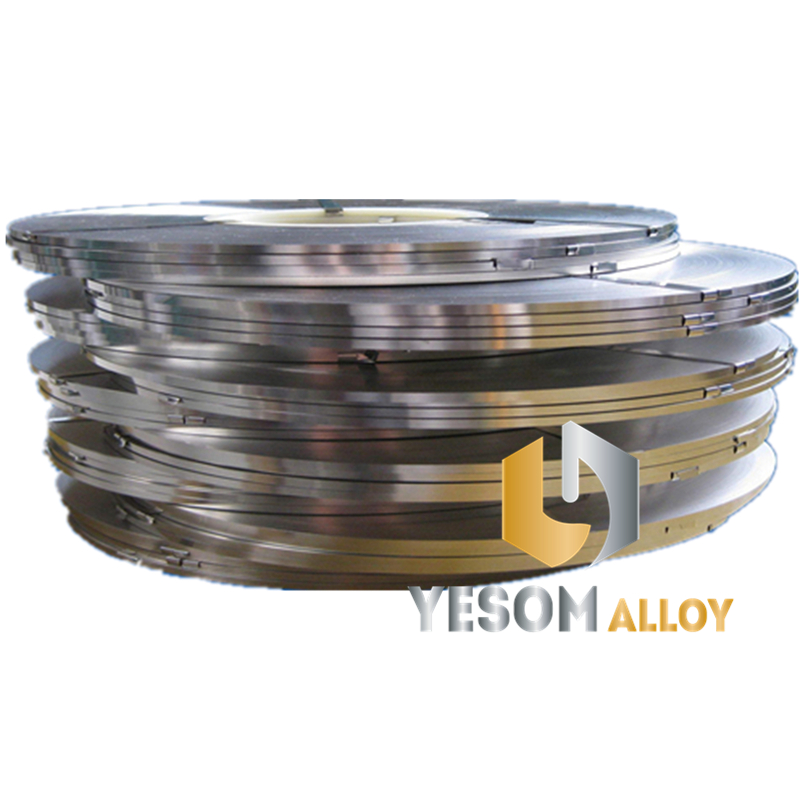

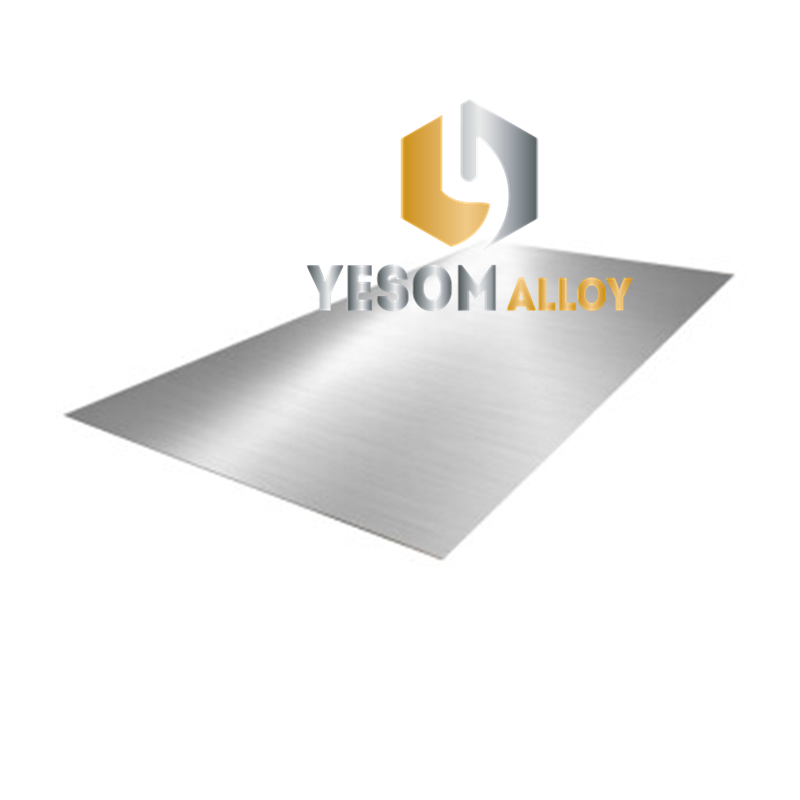

Yesom Group offers Inconel Alloy in shape of wire, bar, plate, strip, coil, flange, etc.
Alloy Grade: Inconel 600 , Inconel 601 , Inconel 718 , Inconel 617 , Inconel 625 , Inconel X-750
Inconel 601
Pallets, fixtures, high-speed gas burners, mesh belts in industrial furnaces;
Inconel 601（UNS N06601 / W.Nr.2.4851）
Chemical composition %
Ni: 58-63
Cr: 21-25
Fe: Margin
Mn: ≤1.5
Cu: ≤1.0
Al: 1-1.7
C: ≤0.10
Si: ≤0.5
P: ≤0.03
S: ≤0.015
Melting Point ℃
1320-1370
Density g/cm3
8.1
Executive Standards
ASTM: B168
AMS: 5870
Application Area
Exhaust system components, combustion chambers of solid waste incinerators and oxygen reheaters used in heat treatment plants.
Designations： AWS 011
Specifications： ASTM B166
Alloy Details
| Density | Melting Point | Coefficient of Expansion | Modulus of Rigidity | Modulus of Elasticity |
| 8.11 g/cm³ | 1411 °C | 13.75 μm/m °C (20 – 100 °C) | 81.2 kN/mm² | 206.5 kN/mm² |
| 0.293 lb/in³ | 2571 °F | 7.6 x 10-6 in/in °F (70 – 212 °F) | 11777 ksi | 29951 ksi |
Heat treatment of finished parts
| Condition as supplied by AWI | Type | Temperature | Time | Cooling |
| Annealed or Spring Temper | Stress Relieve | 480 – 870 °C (900 – 1600 °F) | 1hr | Air |
Properties
| Annealed | ||
| Approx. tensile strength | < 900 N/mm² | < 131 ksi |
| Approx. operating temperature depending on loading and environment | -200 to +1000 °C | -330 to +1830 °F |
| Spring Temper | ||
| Approx. tensile strength | 1200 – 1450 N/mm² | 174 – 210 ksi |
| Approx. operating temperature depending on loading and environment | -200 to +1000 °C | -330 to +1830 °F |
The above information is typical. If you require different please ask.
