Hastelloy Alloy is a kind of nickel based high temperature alloy.

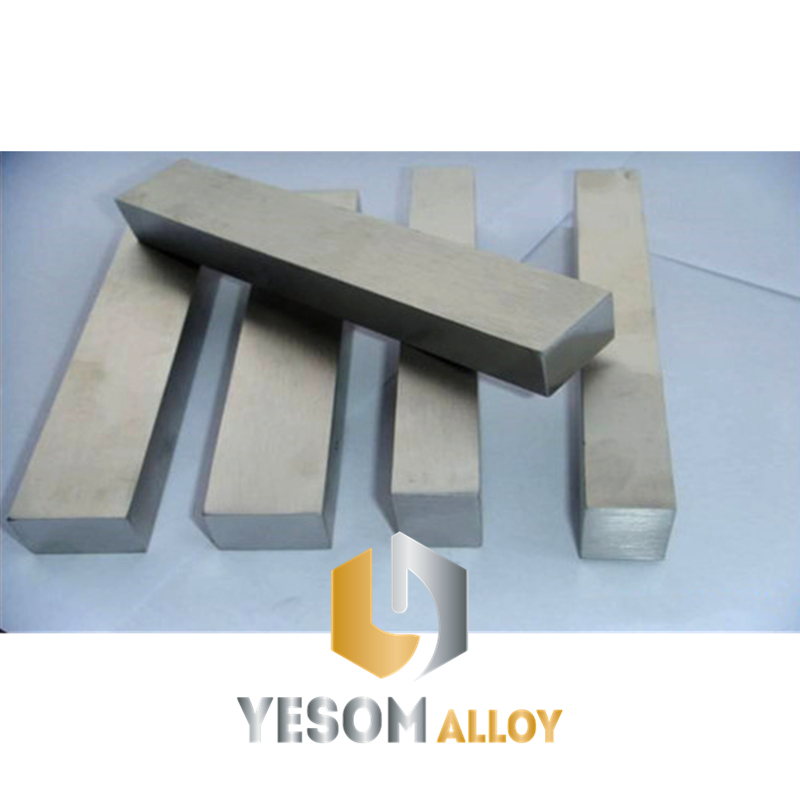

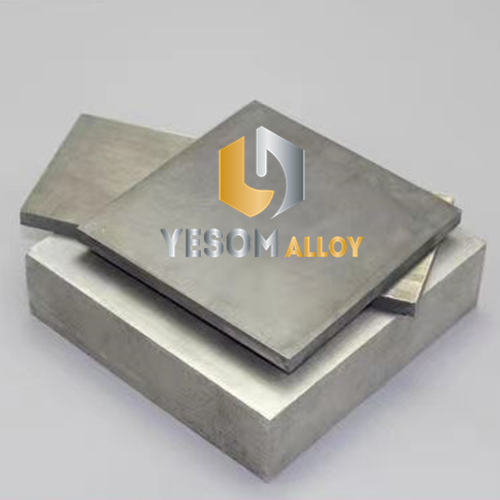

Yesom Group offers Hastelloy Alloy in shape of wire, bar, plate, strip, coil, flange, etc.
Alloy Grade: Hastelloy C-4 , Hastelloy C-22 , Hastelloy C-276 , Hastelloy C-2000 ,
Hastelloy B , Hastelloy B-2 , Hastelloy B-3 , Hastelloy X
Hastelloy C-22
Hastelloy C-22 (UNS N06022 / W.Nr.2.4602)
Chemical Composition %
Ni: Margin
Cr: 20.0-22.5
Fe: 2-6
W: 2.5-3.5
Mo: 12.5-14.5
Mn: ≤0.5
Co: ≤2.5
C: ≤0.015
Si: ≤0.08
P: ≤0.02
S: ≤0.02
V: ≤0.35
Melting Point ℃
1325-1370
Density g/cm3
8.9
Executive Standards
ASTM: B575
Application Area
Glass paper manufacturing, chlorination system, rollers for electrogalvanizing tanks, flue gas cleaning system, geothermal well, hydrogen fluoride furnace cleaner, pesticide production, plate heat exchanger
Designations: AWS 053
Specifications: ASTM B574 , ASTM B575 , ASTM B619
Alloy Details
Heat treatment of finished parts
Properties
The above information is typical. If you require different please ask.
Density
Melting Point
Coefficient of Expansion
Modulus of Rigidity
Modulus of Elasticity
8.69 g/cm³
1399 °C
12.4 μm/m °C (20 – 100 °C)
78.6 kN/mm²
205.5 kN/mm²
0.314 lb/in³
2550 °F
6.9 x 10-6 in/in °F (70 – 212 °F)
11400 ksi
29806 ksi
Condition as supplied by AWI
Type
Temperature
Time
Cooling
Annealed or Spring Temper
Stress Relieve
400 – 450 °C (750 – 840 °F)
2 Hr
Air
Annealed
Approx. tensile strength
<1100 N/mm²
<159 ksi
Approx. operating temperature depending on loading and environment
-200 to +400 °C
-330 to +750 °F
Spring Temper
Approx. tensile strength
1400 – 1700 N/mm²
203 – 247 ksi
Approx. operating temperature depending on loading and environment
-200 to +400 °C
-330 to +750 °F
