Hastelloy Alloy is a kind of nickel based high temperature alloy.

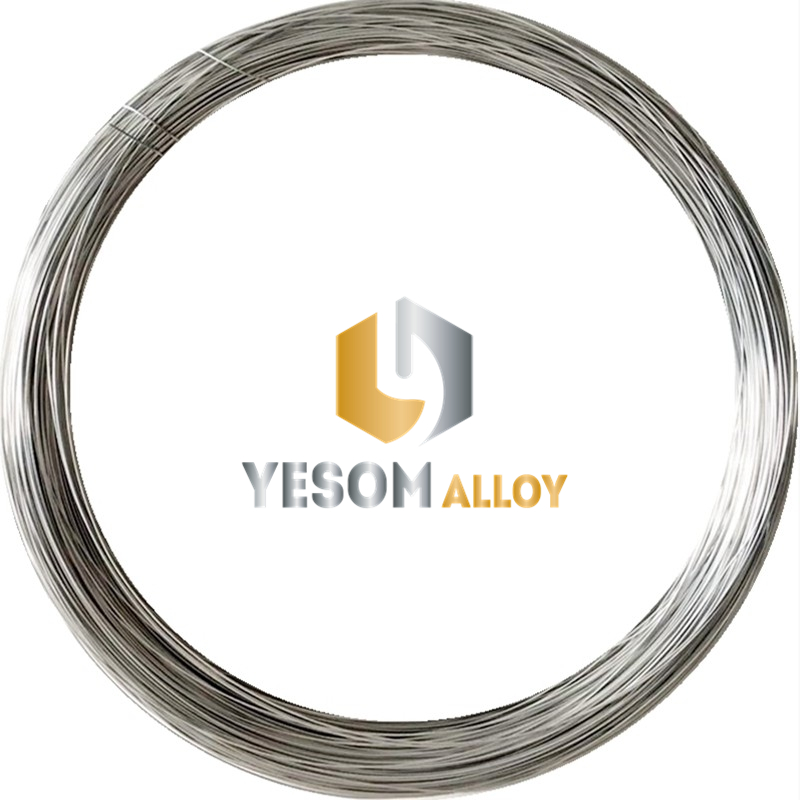

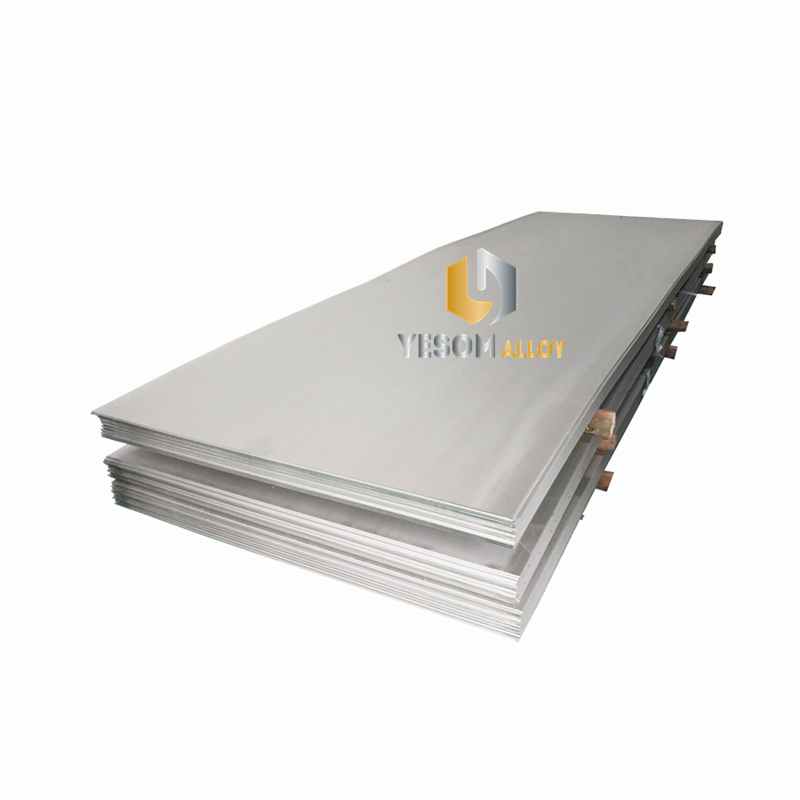

Yesom Group offers Hastelloy Alloy in shape of wire, bar, plate, strip, coil, flange, etc.
Alloy Grade: Hastelloy C-4 , Hastelloy C-22 , Hastelloy C-276 , Hastelloy C-2000 ,
Hastelloy B , Hastelloy B-2 , Hastelloy B-3 , Hastelloy X
Hastelloy C-200
| Hastelloy C-2000（UNS N06200、W.Nr.2.4675、NS3405、NS345） | |||
| Chemical Composition % | Ni: Margin | Cr: 22-24 | Fe: ≤3.0 |
| Mo: 15-17 | Cu: 1.3-1.9 | Mn: ≤0.50 | |
| Co: ≤2.0 | Al: ≤0.50 | C: ≤0.01 | |
| Si: ≤0.08 | P: ≤0.025 | S: ≤0.01 | |
| Melting Point ℃ | 1335-1380 | ||
| Density g/cm3 | 8.9 | ||
| Application Area | Used for acetic acid/acetic anhydride, acid leaching, cellophane manufacturing, chlorination systems, complex mixed acids, electrogalvanizing tank rollers, expansion corrugated pipes, flue gas cleaning systems, geothermal wells, incineration cleaning systems, nuclear combustion regeneration, phosphoric acid production, acid cleaning systems, plate heat exchangers, filtration systems, sulfur dioxide cooling towers, sulfonation systems, pipe heat exchangers, welding valves, hydrogen fluoride furnace cleaning, etc. | ||
Designations: AWS 055
Specifications: ASTM B574 , ASTM B575 , ASTM B619
Alloy Details
Heat treatment of finished parts
Properties
The above information is typical. If you require different please ask.
Density
Melting Point
Coefficient of Expansion
Modulus of Rigidity
Modulus of Elasticity
8.5 g/cm³
1399 °C
12.4 μm/m °C (20 – 100 °C)
79 kN/mm²
206 kN/mm²
0.307 lb/in³
2550 °F
6.9 x 10-6 in/in °F (70 – 212 °F)
11458 ksi
29878 ksi
Condition as supplied by AWI
Type
Temperature
Time
Cooling
Annealed or Spring Temper
Stress Relieve
400 – 450 °C (750 – 840 °F)
2 Hr
Air
Annealed
Approx. tensile strength
<1000 N/mm²
<145 ksi
Approx. operating temperature depending on loading and environment
-200 to +400 °C
-330 to +750 °F
Spring Temper
Approx. tensile strength
1300 – 1600 N/mm²
189 – 232 ksi
Approx. operating temperature depending on loading and environment
-200 to +400 °C
-330 to +750 °F
