Incoloy Alloy is a kind of nickel based high temperature alloy.

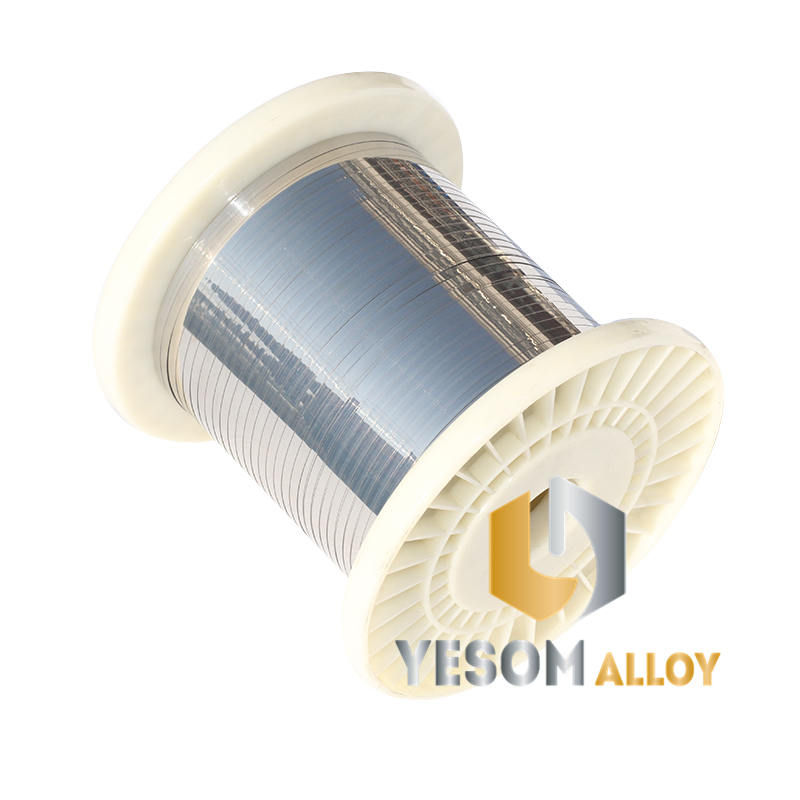

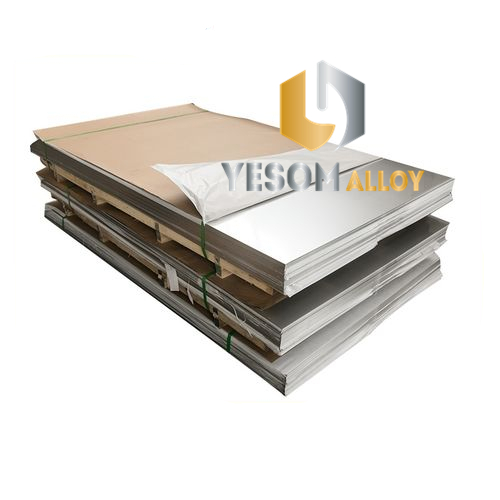

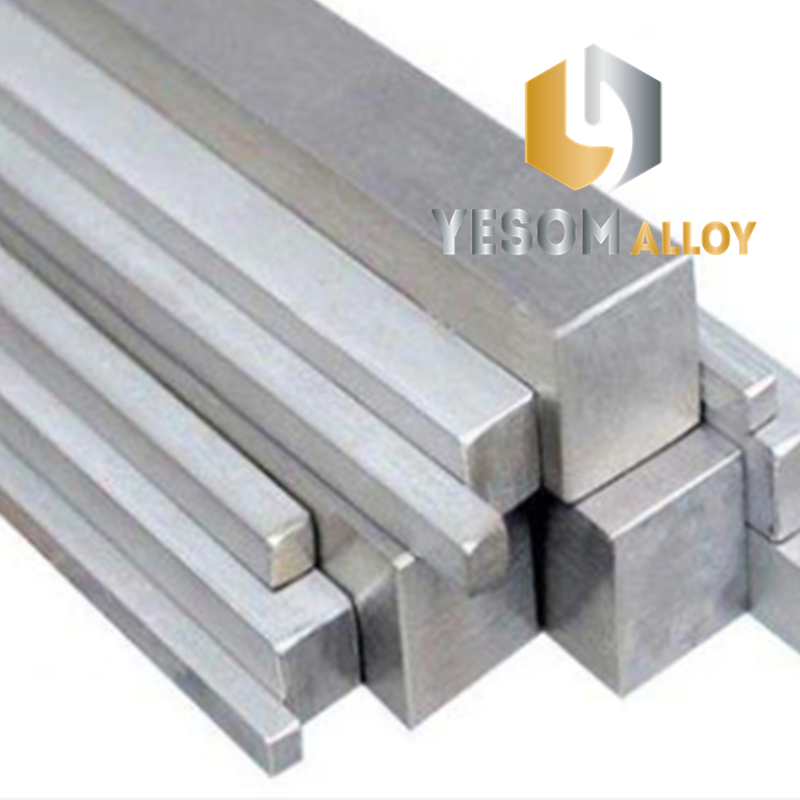

Yesom Group offers Incoloy Alloy in shape of wire, bar, plate, strip, coil, flange, etc.
Alloy Grade: Incoloy 800 , Incoloy 800H , Incoloy 800HT , Incoloy 825 , Incoloy 925 , Incoloy 926 ,
Incoloy A286 , Incoloy 20 , Incoloy 28 , Incoloy 200 , Incoloy 201
Incoloy 800HT
| Incoloy 800/800H/800HT (UNS N08800 / UNS N08810 / UNS N08811) | |||
| Chemical Composition % | Ni: 30-35 | Cr: 19-23 | Fe: Margin |
| Cu: ≤0.75 | Mn: ≤1.5 | Co: ≤2.0 | |
| Ti: 0.15-0.60 | Al: 0.15-0.60 | C: ≤0.1 | |
| Si: ≤1.0 | S: ≤0.015 | ||
| Melting Point ℃ | 1350-1400 | ||
| Density g/cm3 | 8 | ||
| Executive Standards | ASTM: B409 | AMS: 5871 | |
| Application Area | Nitric acid condenser, steam heating tube, heating element tube | ||
Designations: AWS 021
Alloy Details
Heat treatment of finished parts
Properties
Density
Melting Point
Coefficient of Expansion
Modulus of Rigidity
Modulus of Elasticity
7.94 g/cm³
1385 °C
14.4 μm/m °C (20 – 100 °C)
78.9 kN/mm²
196.5 kN/mm²
0.287 lb/in³
2525 °F
7.9 x 10-6 in/in °F (70 – 212 °F)
11444 ksi
28500 ksi
Condition as supplied by AWI
Type
Temperature
Time
Cooling
Annealed or Spring Temper
Stress Relieve
450 – 470 °C (840 – 880 °F)
0.5 – 1 Hr
Air
Annealed
Approx. tensile strength
<800 N/mm²
<116 ksi
Approx. operating temperature depending on loading and environment
-200 to +1000 °C
-330 to +1830 °C
Spring Temper
Approx. tensile strength
800 – 1200 N/mm²
116 – 174 ksi
Approx. operating temperature depending on loading and environment
-200 to +1000 °C
-330 to +1830 °C
The above information is typical. If you require different please ask.
