Hastelloy Alloy is a kind of nickel based high temperature alloy.

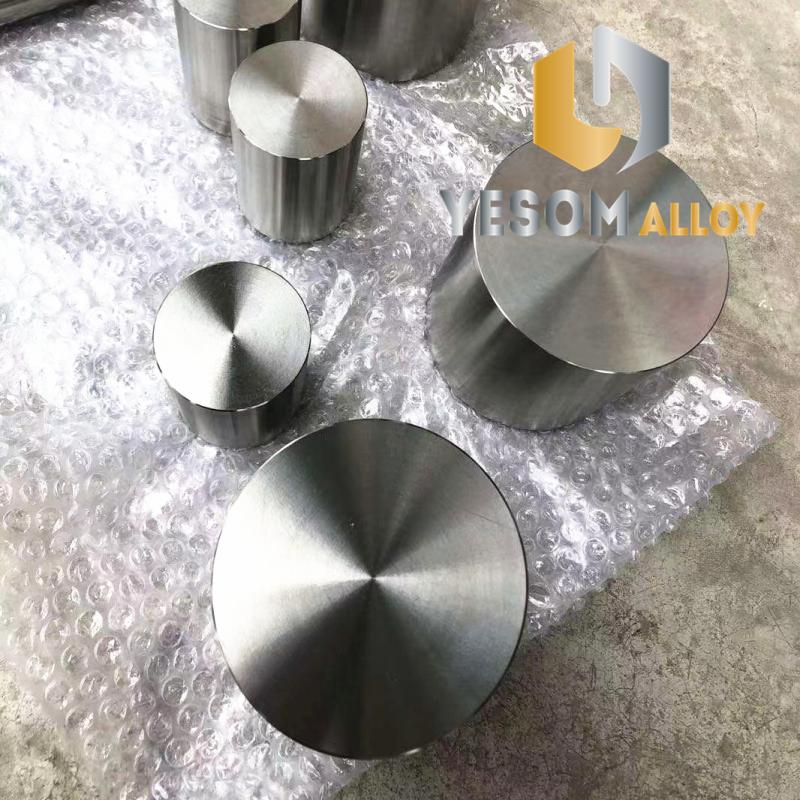

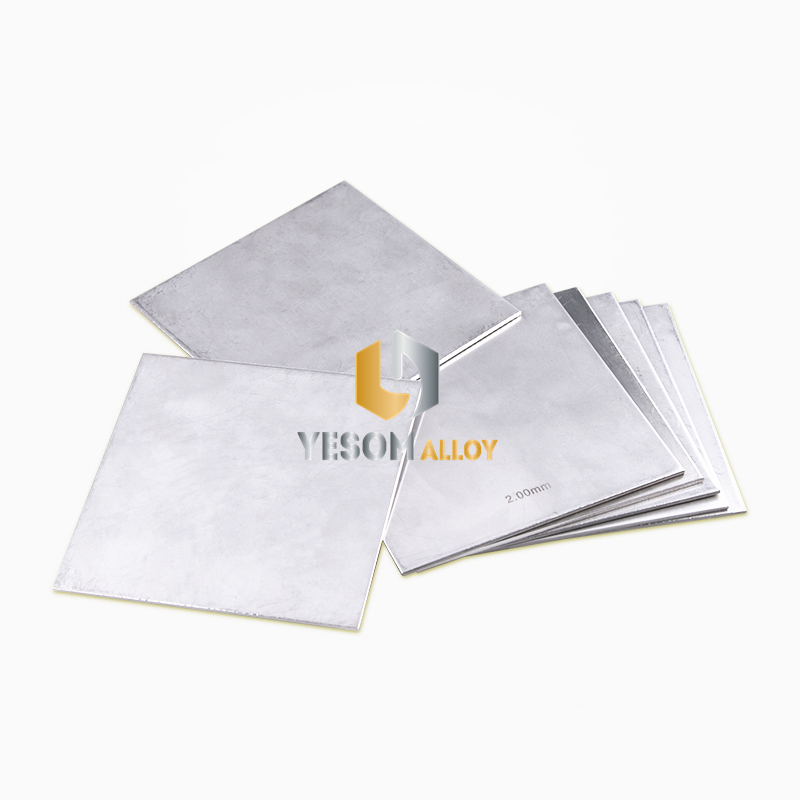

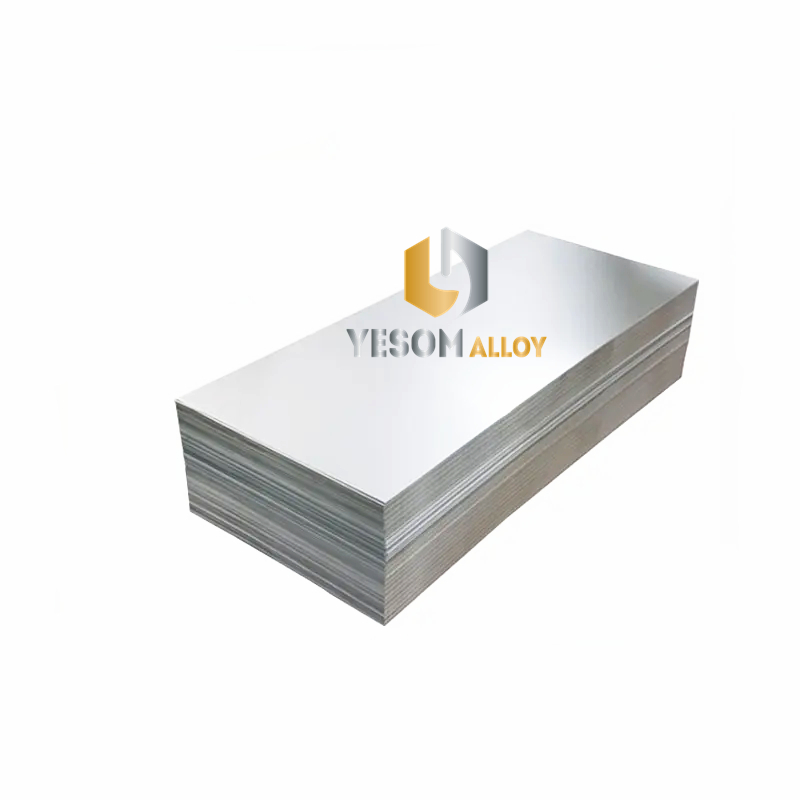

Yesom Group offers Hastelloy Alloy in shape of wire, bar, plate, strip, coil, flange, etc.
Alloy Grade: Hastelloy C-4 , Hastelloy C-22 , Hastelloy C-276 , Hastelloy C-2000 ,
Hastelloy B , Hastelloy B-2 , Hastelloy B-3 , Hastelloy X
Hastelloy B-3
| Hastelloy B-3 | |||
| Chemical Composition % | Ni: ≥65 | Cr: 1.0-3.0 | Fe: 1.0-3.0 |
| W: ≤3.0 | Mo: 27-32 | Cu: ≤0.2 | |
| Mn: ≤3.0 | Co: ≤3.0 | Ti: ≤0.2 | |
| Al: ≤0.5 | C: ≤0.01 | Si: ≤0.1 | |
| P: ≤0.03 | S: ≤0.01 | V: ≤0.2 | |
| Melting Point ℃ | 1370-1418 | ||
| Density g/cm3 | 9.22 | ||
| Application Area |
It has extensive applications in the fields of chemistry, petrochemicals, energy manufacturing, and pollution control. Especially in industries such as sulfuric acid, hydrochloric acid, phosphoric acid, and acetic acid |
||
Designations: AWS 051
Specifications: ASTM B335 , ASTM B619
Alloy Details
Heat treatment of finished parts
Properties
The above information is typical. If you require different please ask.
Density
Melting Point
Coefficient of Expansion
Modulus of Rigidity
Modulus of Elasticity
9.22 g/cm³
1418 °C
10.6 μm/m °C (20 – 100 °C)
83 kN/mm²
216 kN/mm²
0.333 lb/in³
2585 °F
5.7 x 10-6 in/in °F (70 – 212 °F)
12038 ksi
31329 ksi
Condition as supplied by AWI
Type
Temperature
Time
Cooling
Annealed or Spring Temper
Stress Relieve
400 – 450 °C (750 – 840 °F)
2 Hr
Air
Annealed
Approx. tensile strength
<1200 N/mm²
<174 ksi
Approx. operating temperature depending on loading and environment
-200 to +400 °C
-330 to +750 °F
Spring Temper
Approx. tensile strength
1600 – 2000 N/mm²
232 – 290 ksi
Approx. operating temperature depending on loading and environment
-200 to +400 °C
-330 to +750 °F
