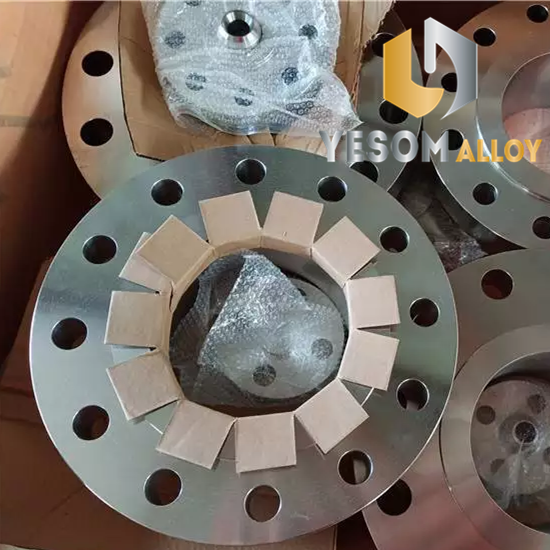

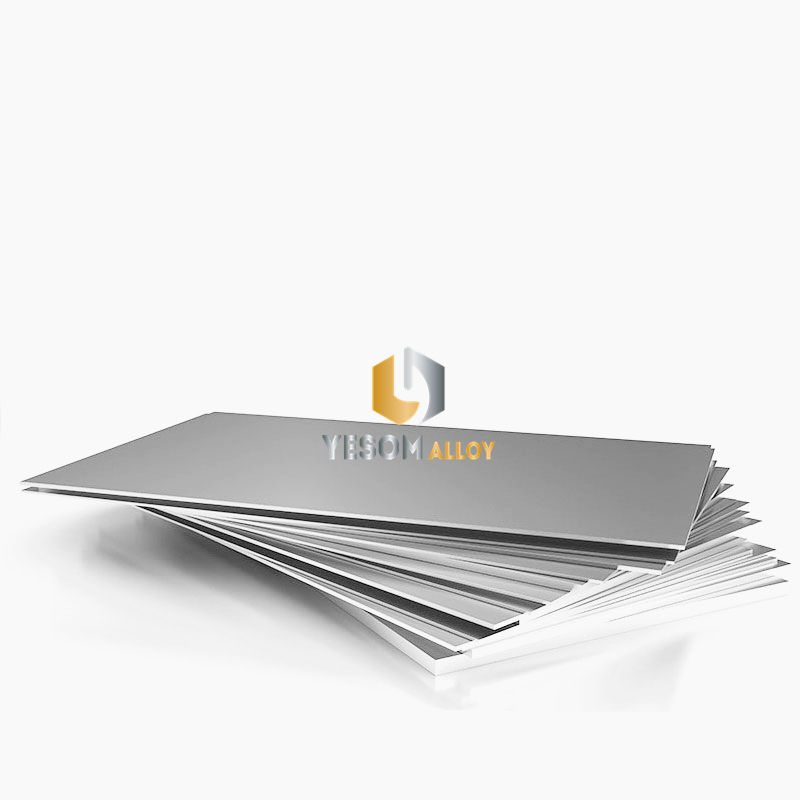

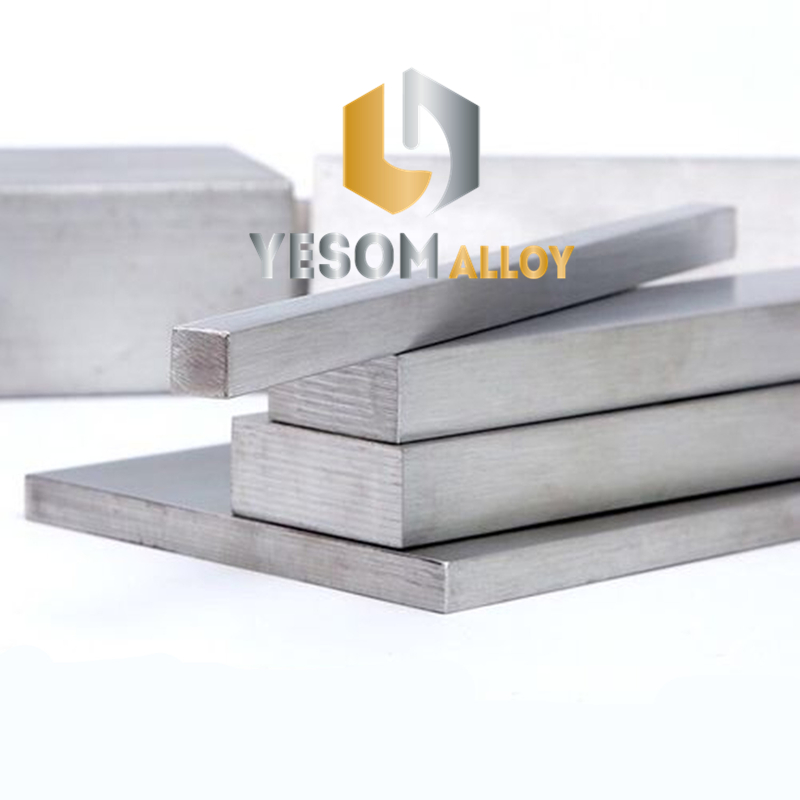

High Temperature Alloy in shape of wire, bar, plate, strip, flange, etc.
GH3039
| GH3039 | |||
| Chemical Composition % | Ni: Margin | Cr: 19-22 | Fe: ≤3.0 |
| C: ≤0.08 | S: ≤0.012 | Mn: ≤0.4 | |
| Si: ≤0.8 | Mo: 1.8-2.3 | ||
| Density g/cm3 | 8.3 | ||
| Application Area | GH3039 can be used for pump shafts and impellers, conveyor scrapers, oil well drilling rings, elastic components, valve pads, etc. It can also be used to manufacture various heat exchange equipment, boiler feedwater heaters, petroleum and chemical pipelines, vessels, towers, tanks, valves, pumps, reactors, shafts, etc. | ||
| Alloy Grade | Chemical Composition % | ||||||
| Cr | Ni | W | Mo | Al | Ti | Fe | |
| GH1015 | 19.0-22.0 | 34.0-39.0 | 4.8-5.8 | 2.5-3.2 | - | - | Margin |
| GH1016 | 19.0-22.0 | 32.0-36.0 | 5.0-6.0 | 2.6-3.3 | - | - | Margin |
| GH1035 | 20.0-23.0 | 35.0-40.0 | 2.5-3.5 | - | ≤0.50 | 0.7-1.2 | Margin |
| GH1040 | 15.0-17.0 | 24.0-27.0 | - | 5.5-7.0 | - | - | Margin |
| GH1131 | 19.0-22.0 | 25.0-30.0 | 4.8-6.0 | 2.8-3.5 | - | - | Margin |
| GH1140 | 20.0-23.0 | 35.0-40.0 | 1.4-1.8 | 2.0-2.5 | 0.2-0.6 | 0.7-1.2 | Margin |
| GH2018 | 18.0-21.0 | 40.0-44.0 | 1.8-2.2 | 3.7-4.3 | 0.35-0.75 | 1.8-2.0 | Margin |
| GH2036 | 11.5-13.5 | 7.0-9.0 | - | 1.1-1.4 | - | ≤0.12 | Margin |
| G2038 | 10.0-12.5 | 18.0-21.0 | - | - | ≤0.50 | 2.3-2.8 | Margin |
| GH2130 | 12.0-16.0 | 35.0-40.0 | 5.0-6.5 | - | 1.4-2.2 | 2.4-3.2 | Margin |
| GH2132 | 13.5-16.0 | 24.0-27.0 | - | 1.0-1.5 | ≤0.40 | 1.75-2.3 | Margin |
| GH2135 | 14.0-16.0 | 33.0-36.0 | 1.7-2.2 | 1.7-2.2 | 2.0-2.8 | 2.1-2.5 | Margin |
| GH2136 | 13.0-16.0 | 24.5-28.5 | - | 1.0-1.75 | ≤0.35 | 2.4-3.2 | Margin |
| GH2302 | 12.0-16.0 | 38.0-42.0 | 3.5-4.5 | 1.5-2.5 | 1.8-2.3 | 2.3-2.8 | Margin |
| GH3030 | 19.0-22.0 | 74.3-77.5 | - | - | ≤0.15 | 0.15-0.35 | ≤1.5 |
| GH3039 | 19.0-22.0 | 68.5-74.9 | - | 1.8-2.3 | 0.35-0.75 | 0.35-0.75 | ≤3.0 |
| GH3044 | 23.5-26.5 | 49.3-55.7 | 13.0-16.0 | ≤0.50 | ≤0.50 | 0.3-0.7 | ≤4.0 |
| GH3128 | 19.0-22.0 | 54.9-61.7 | 7.5-9.0 | 7.5-9.0 | 0.4-0.8 | 0.4-0.8 | ≤2.0 |
| GH3536 | |||||||
| GH4033 | 19.0-22.0 | 69.1-73.9 | - | - | 0.6-1.0 | 2.4-2.8 | ≤4.0 |
| GH4037 | 3.0-26.0 | 71.8-72.9 | 5.0-7.0 | 2.0-4.0 | 1.7-2.3 | 1.8-2.3 | ≤5.0 |
| GH4043 | 15.0-19.0 | 59.4-69.3 | 2.0-3.5 | 4.0-6.0 | 1.0-1.7 | 1.9-2.8 | ≤5.0 |
| GH4049 | 9.5-11.0 | 52.9-59.0 | 5.0-6.0 | 4.5-5.5 | 3.7-4.4 | 1.4-1.9 | ≤1.5 |
| GH4133 | 19.0-22.0 | 74.0-76.0 | - | - | 0.7-1.2 | 2.5-3.0 | ≤1.50 |
| GH4169 | 17.0-21.0 | 50.0-55.0 | - | 2.8-3.3 | 0.2-0.6 | 0.65-1.15 | Margin |
