Application:
1). Tie wire, pins, lashing, forming wire, filters, gaskets, elevators, safety wire, shaped and flat wire,
2). Conveyors, jewelry, springs, brush welding, electrical, wire line, craft , bicycle fittings
3). Kitchen and sanitation tools, goods shelf, pet cages, gill racks, decorative handles and baskets
4). Food and medical machinery accessions and many more applications.90D, Q690E, Q690D, Q690C, Q890C, Q890D
Soft Annealed Stainless Steel Wire:
|
mm Dia. |
N/mm2 T/S |
EL % |
|
0.05-0.10 |
650-900 |
>15 |
|
0.10-030 |
640-880 |
>20 |
|
0.30-0.60 |
590-860 |
>30 |
|
0.60-1.60 |
540-820 |
>30 |
|
1.60-5.00 |
520-770 |
>30 |
Hardness Stainless Steel Wire:
|
1/4H stainless steel wire |
||
|
Type |
Dia. MM |
T/S N/MM2 |
|
Sus304/sus304H/sus316/sus316L/sus201/430 |
0.05-1.60 |
830 -1180 |
|
Sus304/sus304H/sus316/sus316L/sus201/430 |
1.60-3.00 |
780 -1130 |
|
Sus304/sus304H/sus316/sus316L/sus201/430 |
3.00-6.00 |
730 -1080 |
|
1/2H stainless steel wire |
||
|
Type |
Dia. MM |
T/S N/MM2 |
|
Sus304/sus304H/sus316L/sus201/430 |
0.05-1.60 |
1130 -1470 |
|
Sus304/sus304H/sus316L/sus201/430 |
1.60-3.00 |
1080 -1420 |
|
Sus304/sus304H/sus316L/sus201/430 |
3.00-6.00 |
1080 -1420 |
|
3/4H full hardness stainless steel wire |
||
|
mm Dia. |
（N/mm2）T/S |
|
|
WPA3/4 |
WPB |
|
|
0.08-0.20 |
1650-1900 |
2150-2400 |
|
0.23-0.40 |
1600-1850 |
1950-2300 |
|
0.45-1.00 |
1530-1780 |
1850-2100 |
|
1.20-2.00 |
1400-1700 |
1650-2000 |
|
2.30-4.00 |
1230-1570 |
1450-1800 |
|

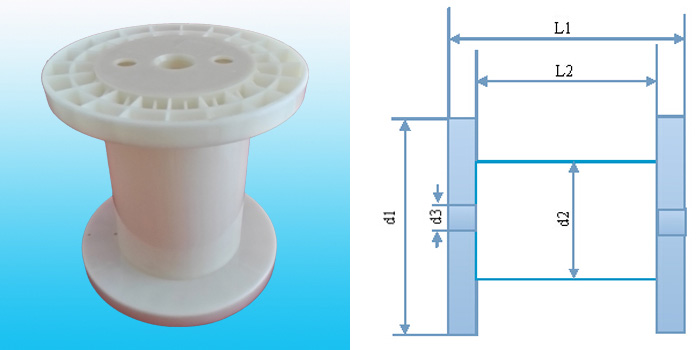

No. |
Spool Model |
Outer Diameter |
Trunk |
Inner |
Inner Height(L2) |
Total height |
Weight of Spool 201 Stainless Steel Sheet Plate
